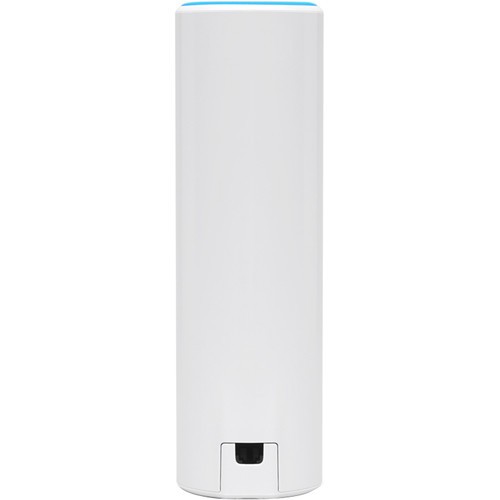

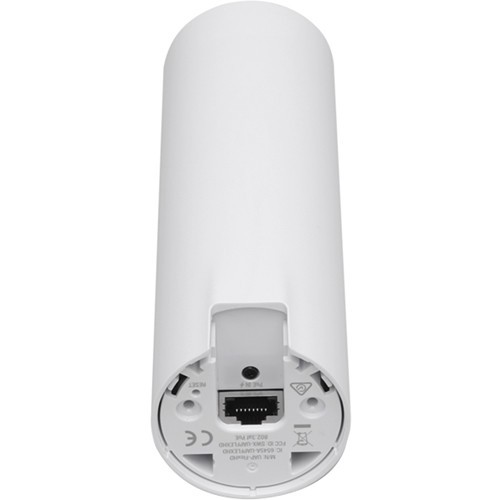

UniFi AP FlexHD

UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AP Flex HD access point has a small, sleek design and compact form factor that can easily be deployed indoors or outdoors. With flexible mounting options, the Flex HD can be deployed on tabletops, walls, poles, and ceilings*.
Easily accessible through the UniFi app (iOS or Android) and any standard web browser, UniFi Controller is a powerful software engine ideal for high‑density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

• Requires optional ceiling mount accessory

Features

• Save Money and Save Time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
• Powerful Hardware The UniFi AP Flex HD features 802.11ac Wave 2 MU‑MIMO technology.
• Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.
• Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to hundreds while maintaining a single unified management system.

Dimensions: 48.50 x 159.49 mm (1.90 x 6.28")

Weight: 315 g (0.69 lb)

Networking Interface: (1) 10/100/1000 Ethernet Port

Power Method: 802.3af

Power Supply: 802.3af 48V, 0.32A Gigabit PoE Adapter

Maximum Power Consumption: 10.5W

Voltage range: 44 - 57VDC

Operating Frequency: 2,4 GHz, 5GHz

Maximum TX Power EIRP

2.4 GHz: 23dBm

5 GHz: 26dBm

Throughput

2.4 GHz: 300 Mbps

5 GHz: 1733 Mbps

Antenna Gain

2.4GHz: 1.6dBi

5GHz: 4 dBi

Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2

Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID: Up to Four per Radio

Mounting: Ceiling/Pole/Tabletop/Wall

Operating Temperature: -30 to 70° C (-22 to 158° F)

Operating Humidity: 5 to 95% Noncondensing

Certifications: CE, FCC, IC
